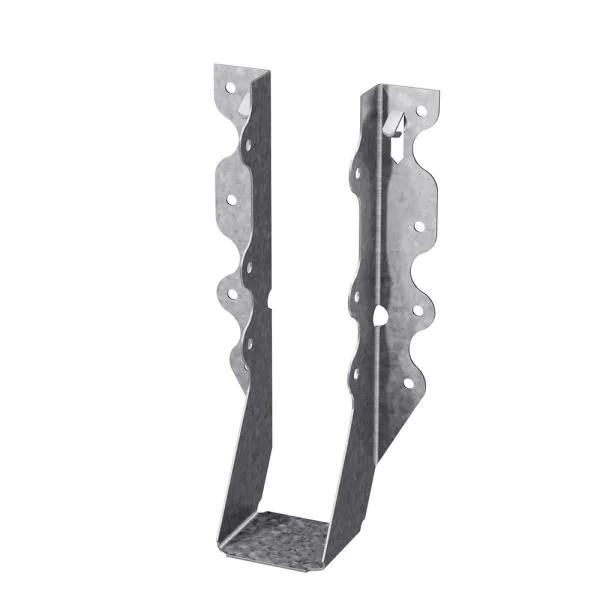

The LU is designed for joist-to-header installation in wood-framed construction. This face-mount hanger features speed prongs to temporarily position and secure the connector for easier and faster installation. The economical LU hanger is value engineered for strength.
- The LU series installs using several fastener selections with tested allowable loads
- Precision-formed — engineered for installation ease and design value
- Seat width: 1-9/16-in
- Nominal joist size: 2×8, 2×10
- Made from 20-Gauge steel
- Galvanized (G90) for extra corrosion resistance
- Install with (8) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.148 in. x 1-1/2 in. nails in the joist; #9 x 1-1/2 in. Strong-Drive SD screws may also be used
