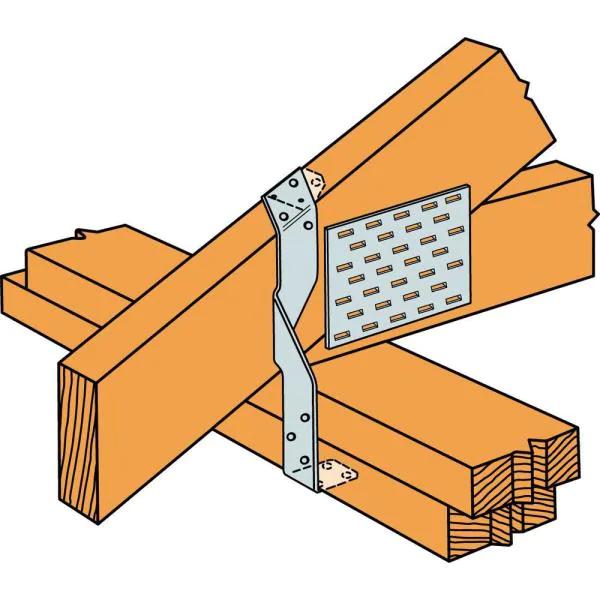

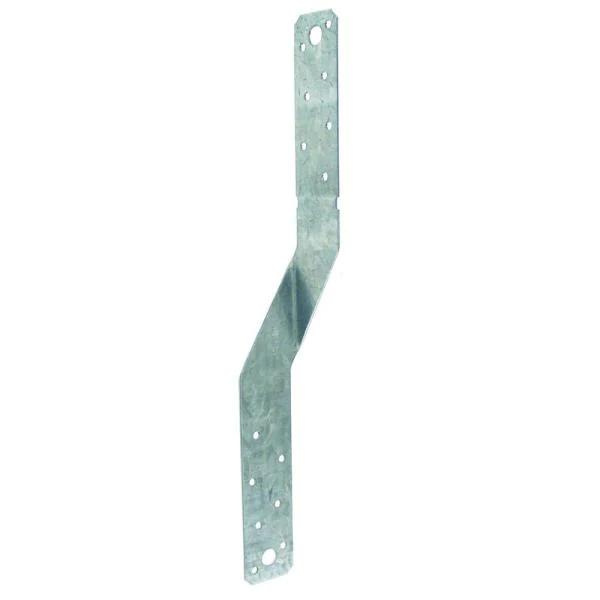

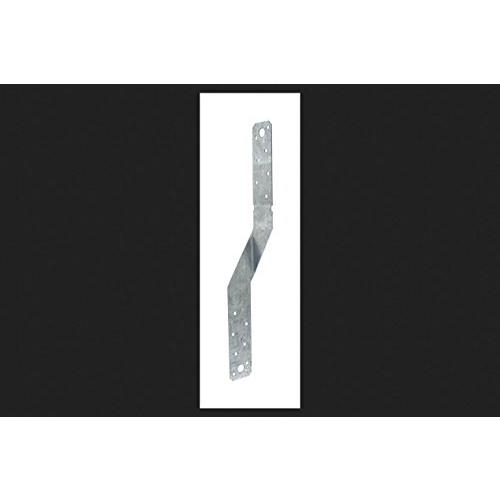

The LTS provides a tension connection between two members, resisting light to medium uplift loads at the rafter or heel of a truss. These economical light twist straps have a 2-in bend section that reduces interference at the transition points between the two members. The LTS is engineered so the straps do not need to be wrapped over the truss to achieve the allowable load.
- Available with the bend reversed
- Versatile with many lengths offered to fit the specific application
- Length: 12-in
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Install with 10d common nails or 10d x 1-1/2 in. nails
